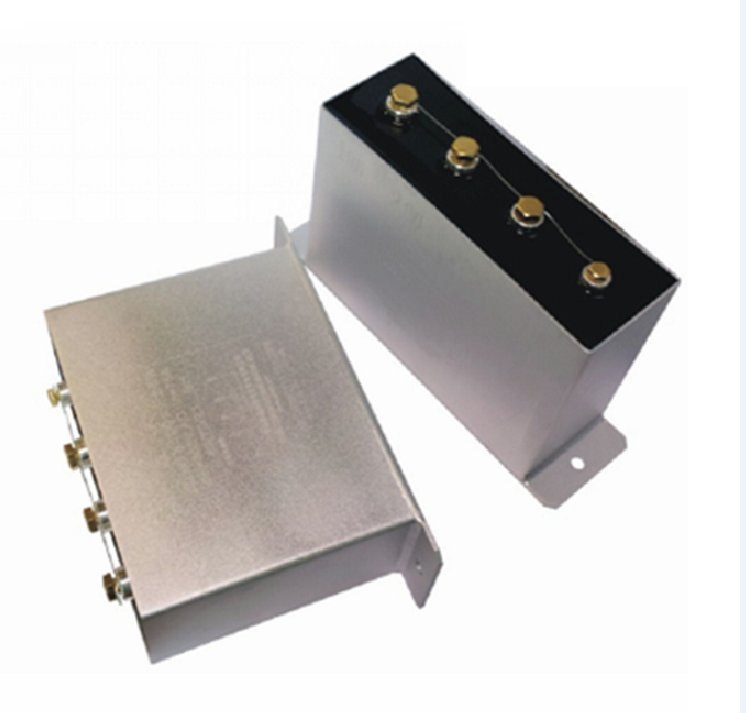

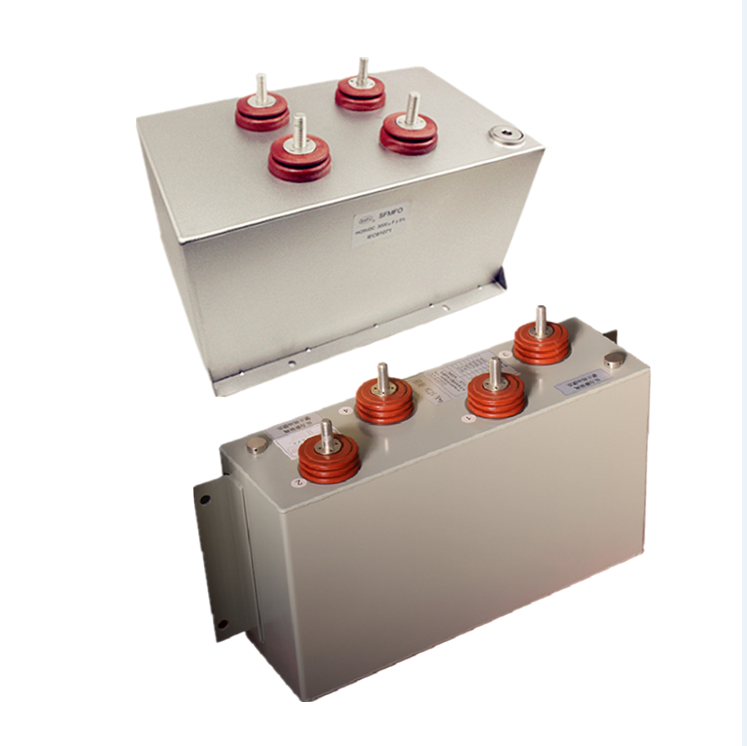

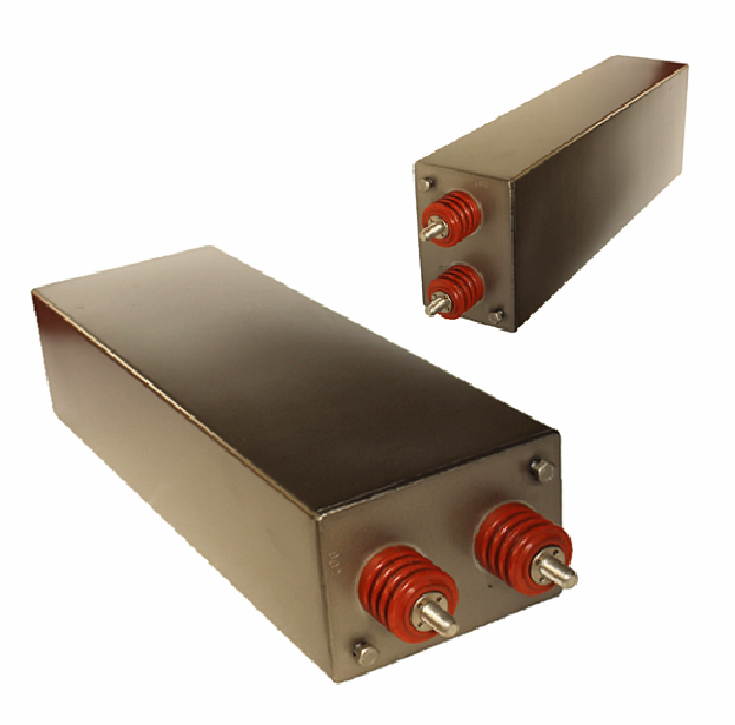

LG series DC-link/energy storage capacitors
Type: : LG series
Spec : 100-30,000μF/600-5,000VDC
Description : DC-link,energy storage,DC filtering
Application : For solar&wind inverter/ converter /SVG/power supply etc.
Detail


LG series DC capacitors

for dc link, energy storage


█ELECTRICAL CHARACTERISTICS

容量范围   Capacitance Range

100~30000μF

使用温度   Operating Temperature

-400C~+850C (case)

容量偏差   Capacitance Tolerance

±5%(J);±10% (K)

额定电压   Rated Voltage

600~20000V.DC

耐电压     Test Voltage between Terminal

1.5Un 10s @25℃

极壳耐压   Test Voltage between Terminal/Case

(1.5Un+1000)VAC,Min3000VAC,for 2 s

绝缘电阻   Insulation Resistance

R*C≥5000S(100VDC, 60S)

海拔       Max.Altitude

<4000m

阻燃性     Flame Resistance

UL 94V-0

介质损耗角 Dissipation factor

Tgσ≤0.002(10KHz,20℃)

预期寿命   Lifetime Expectancy

≥100,000Hours (Un,≤70℃)


█COMMON DESIGN









█COMMON DESIGN (mm)

Un(Rated Voltage)

Cn

L

W

H

Weight(Kg)

800VDC

1000μF

145

135

155

4.8

2000μF

260

135

160

8.8

5000μF

315

135

275

18

10000μF

315

270

275

35

1200VDC

1200μF

240

135

205

10

1800μF

345

135

205

15

3000μF

345

135

310

23

6000μF

560

135

360

43

1800VDC

1200μF

370

135

270

21

1800μF

370

135

380

30

3000μF

485

175

330

44

5000μF

490

175

500

67

3300VDC

500μF

295

175

310

25

1600μF

455

175

575

72

2100μF

430

235

560

89

上述尺寸参数可按需调整长宽高.(Customization available)

注:以上参数仅作参考,请以实际图纸为准。规格较多,无法一一列出,有疑问请联系您的客服。

Note:The above parameters are just for your reference only,the details please check your specification.





Download Datasheet 点击下载规格书
