Understanding Snubber Capacitors: A Key Solution for Circuit Protection

Snubber capacitors play an essential role in circuit protection by absorbing peak voltages, making them an indispensable component in a wide range of applications. Their unique design differentiates them from ordinary capacitors, and they are specifically engineered to protect circuits from transient voltage spikes and power surges.

Function of Snubber Capacitors

Snubber capacitors are primarily used in snubber circuits, where their function is to absorb and mitigate high-frequency voltage spikes that can otherwise damage sensitive components, such as IGBTs (Insulated Gate Bipolar Transistors). By controlling the peak voltage, they enhance circuit stability and prolong the lifespan of the components. This makes snubber capacitors highly effective in circuits where high-frequency resonance and rapid voltage changes are present, such as in IGBT protection.

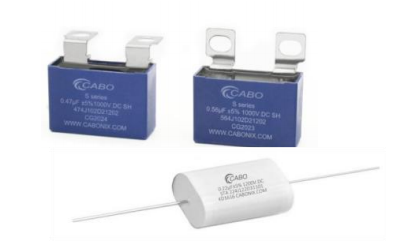

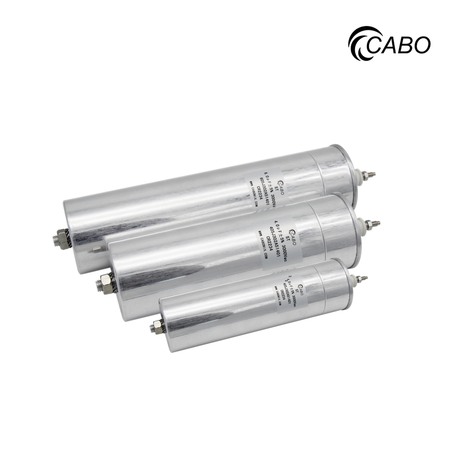

Structural Characteristics of Snubber Capacitors

The design of a snubber capacitor is specially tailored to meet the rigorous demands of high-power circuits. Key structural features include:

• Double-Sided Metallized Film Inner Column Structure: This construction enhances the capacitor’s performance, reducing inductance and allowing it to withstand higher ripple currents and high du/dv (voltage change over time).

• End-Face Spraying Technology: This advanced technique helps improve the capacitor's ability to handle high overvoltage situations, making it suitable for absorbing the sudden voltage waves often encountered in IGBT buffer lines and high-frequency resonance circuits.

• Multi-Lead Design: A multi-lead design ensures that the capacitor can handle high currents while maintaining low inductance, thus offering superior performance in dynamic environments.

Importance of Reducing Inductance in Snubber Circuits

The effectiveness of a snubber capacitor is significantly influenced by the inductance in the circuit, especially in high-power IGBT circuits. Stray and bus inductances can introduce noise and instability, reducing the efficiency of the snubber circuit. To mitigate these effects, the following design strategies are recommended:

1. Short DC Bus Lines: Minimizing the length of the DC bus reduces inductance and enhances the overall circuit performance.

2. Proximity of Buffer Circuit to IGBT Module: Placing the buffer circuit as close as possible to the IGBT module reduces the impact of stray inductances and improves snubber capacitor performance.

3. Use of Low-Inductance Capacitors: Employing low-inductance polypropylene non-polar capacitors, in combination with fast snubber diodes, optimizes the buffer circuit for fast response times and effective voltage suppression.

4. Direct Integration: A growing trend is the direct installation of snubber capacitors onto IGBT modules. This integration significantly reduces inductive effects and improves the capacitor's ability to absorb voltage spikes effectively.

Snubber capacitors are vital for protecting high-power IGBT circuits and other sensitive electronic components from transient voltage spikes. Their specialized construction, low-inductance design, and high ripple current tolerance make them essential in applications requiring robust circuit protection. By optimizing the placement and structure of snubber circuits, engineers can maximize the performance and reliability of IGBT modules, ensuring their safe and efficient operation in demanding environments.
