How to Select the Right Pulse Capacitor?

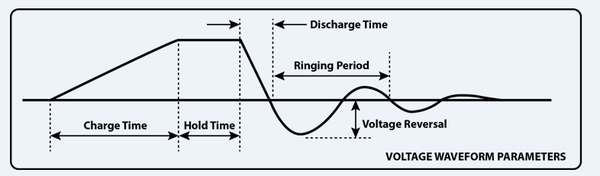

Pulse capacitors are essential in circuits where large amounts of energy need to be released in a very short time. They serve as temporary energy reservoirs, storing charge and discharging it instantly when a system requires a powerful pulse. Applications range from medical devices (AEDs, ESWL), industrial lasers, power switching, defense technologies, to fusion energy research.

Although the term “pulse capacitor” covers several types—such as ceramic, foil film, and metallized film capacitors—not all of them perform equally well when energy density, reliability, and cost are considered.

1. Energy Density

The basic energy equation,

W=½UQ=½CU²

shows that both capacitance and voltage determine stored energy.

lCeramic capacitors are usually limited to very small capacitances (pF–nF), which makes them unsuitable for high-energy storage.

lFilm capacitors (metallized or foil) can reach µF or even mF levels, making them far more practical for real pulse power applications.

For most high-voltage pulse systems, film capacitors offer the best balance of energy density and manufacturability.

2. Lifetime and Reliability

Ceramic capacitors may last through millions of cycles, but their limited capacitance restricts their use in high-energy discharge circuits.

Modern metallized film capacitors, however, provide:

lSelf-healing capability: extending operating life under demanding conditions.

lStable performance across thousands to tens of thousands of shots.

lCustomizable designs to balance energy storage and longevity.

In real-world projects, film capacitors are preferred where predictable lifetime and energy handling matter more than ultra-high cycle counts.

3. Pulse Current Handling

Different capacitor types respond very differently to surge current:

lFoil capacitors: very high pulse current, but bulky and less cost-effective.

lCeramic capacitors: limited current capability.

lMetallized film capacitors: a sweet spot—they manage high pulse currents while keeping size and cost under control.

That’s why film capacitors dominate medical and industrial pulse discharge applications.

4. Practical Selection Guidelines

lLow capacitance, signal-level use (<1 nF): Ceramic

lHigh capacitance, high energy (>10 nF): Film capacitors (metallized or foil)

lBest energy density for compact systems: Metallized film

lBest pulse current: Foil, though film covers most industrial needs

lHigh-voltage designs: All possible, but film is the most scalable choice

5. Why Engineers Prefer Film Capacitors

When evaluating actual requirements—energy density, reliability, pulse current, scalability, and cost—film capacitors consistently emerge as the most practical solution.

That’s why industries from medical equipment to advanced energy systems rely heavily on film-based pulse capacitors.

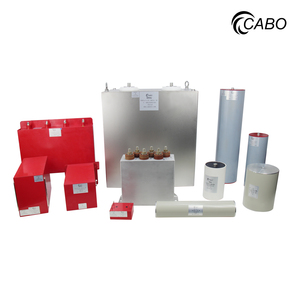

At CABO Electronics, our PPC, PPA, PMS, and PPS series are specifically engineered to meet these needs. They are widely adopted in:

lMedical defibrillators (AED, TMS, ESWL)

lIndustrial lasers & welding systems

lFusion energy & defense pulse power devices

Comparison of Pulse Capacitor Types
